Regular price $899.00


extended warranty

Free Automatic 1-year Warranty Extension Offer

$0.00 All purchases made from authorized resellers come with an extended warranty. Purchases directly from our Official Website will receive an auto-extension.

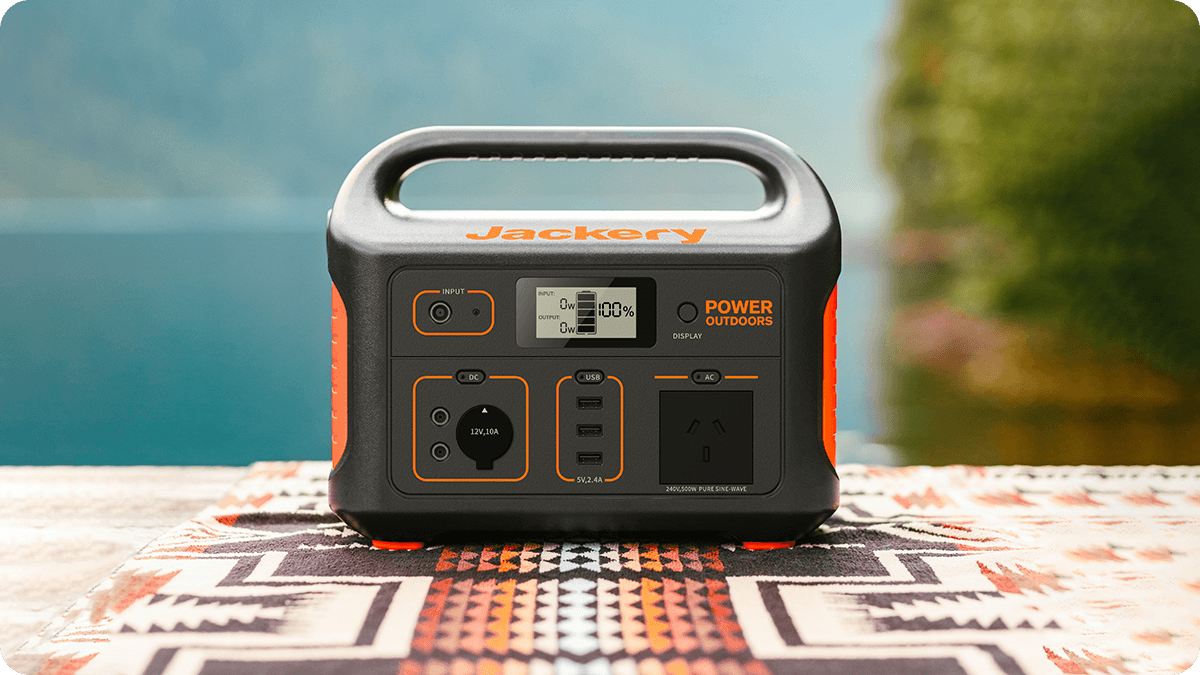

The Jackery Explorer 500 is a 518Wh lithium portable power station. It is one of the lightest and most portable rechargeable lithium battery generators on the market.

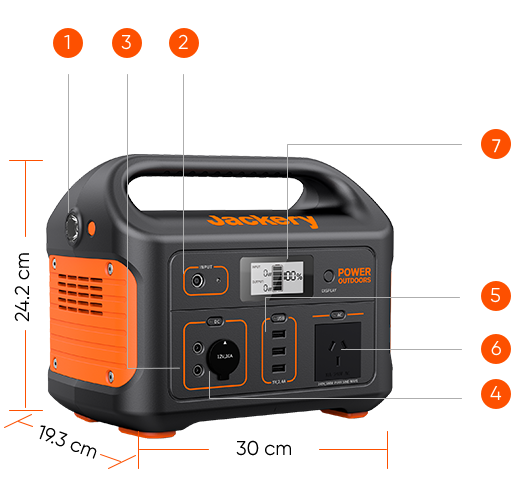

  • Large Capacity: The Jackery Explorer 500 has a 518 watt-hour (24Ah, 21.6V) lithium-ion battery pack and a pure sine wave inverter. It features 1* AC outlet (240V 500W 1000W peak), 3*USB-A ports, 2* DC ports, and 1*car port to run low to high power appliances, including a mini-fridge, air pump, and TV.

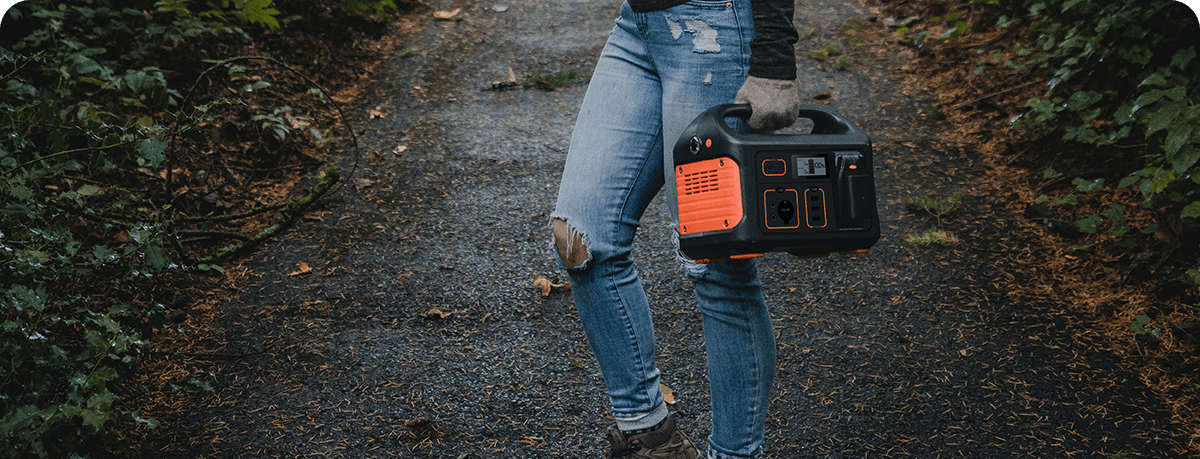

  • Designed for Portability: The Jackery Explorer 500 portable power station is about the size of a basketball and has a solid handle. Its easy-carry and compact design make the Jackery Explorer 500 perfect for enjoying RV camping and road trips.
  • Four Ways to Recharge: The Explorer 500 has a high-quality built-in MPPT charge controller. This allows quick and easy green solar recharging when paired with the Jackery SolarSaga 100W solar panel (sold separately). You can also recharge the Explorer 500 with a wall outlet, car outlet, and electric generator.
products/E500.jpg
Jackery Explorer 500 Portable Power Station
$899.00

VERSATILE OUTDOOR POWER

500 Watt output
518Wh(24Ah) lithium battery
PURE SINE WAVE AC outlets
12V carport and 3* USB ports
Note that the total rated wattage should be under 500w (surge 1000w). If the device power is outside this range, the Explorer 500 may shut down.

VERSATILE OUTDOOR POWER

500 Watt output
518Wh(24Ah) lithium battery
PURE SINE WAVE AC outlets
12V carport and 3* USB ports
Note that the total rated wattage should be under 500w (surge 1000w). If the device power is outside this range, the Explorer 500 may shut down.

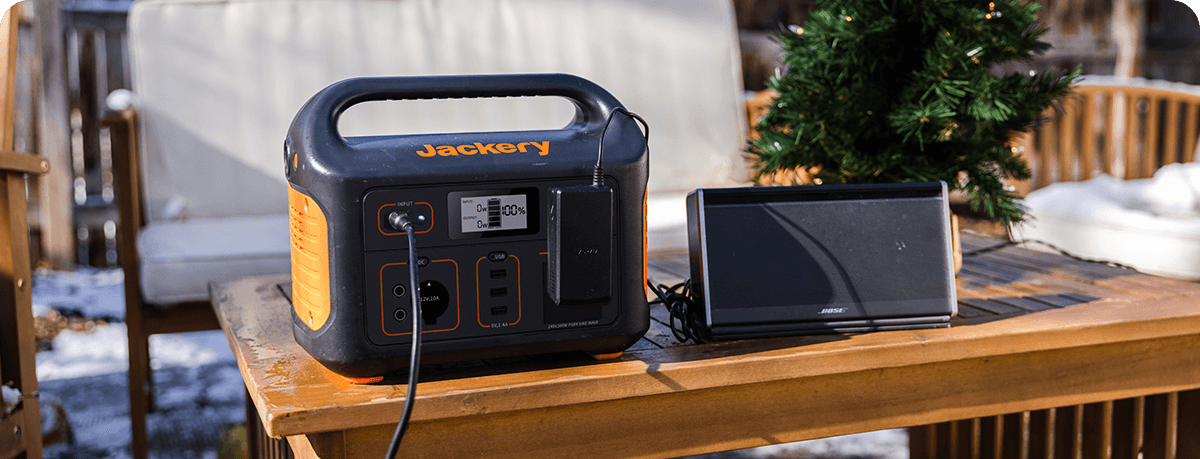

GIVE YOUR APPLIANCES MORE RUN TIME

FOUR WAYS TO RECHARGE

Solar panel
Wall socket
Vehicle's 12V output
Electric Generator

FOUR WAYS TO RECHARGE

Solar panel
Wall socket
Vehicle's 12V output
Electric Generator

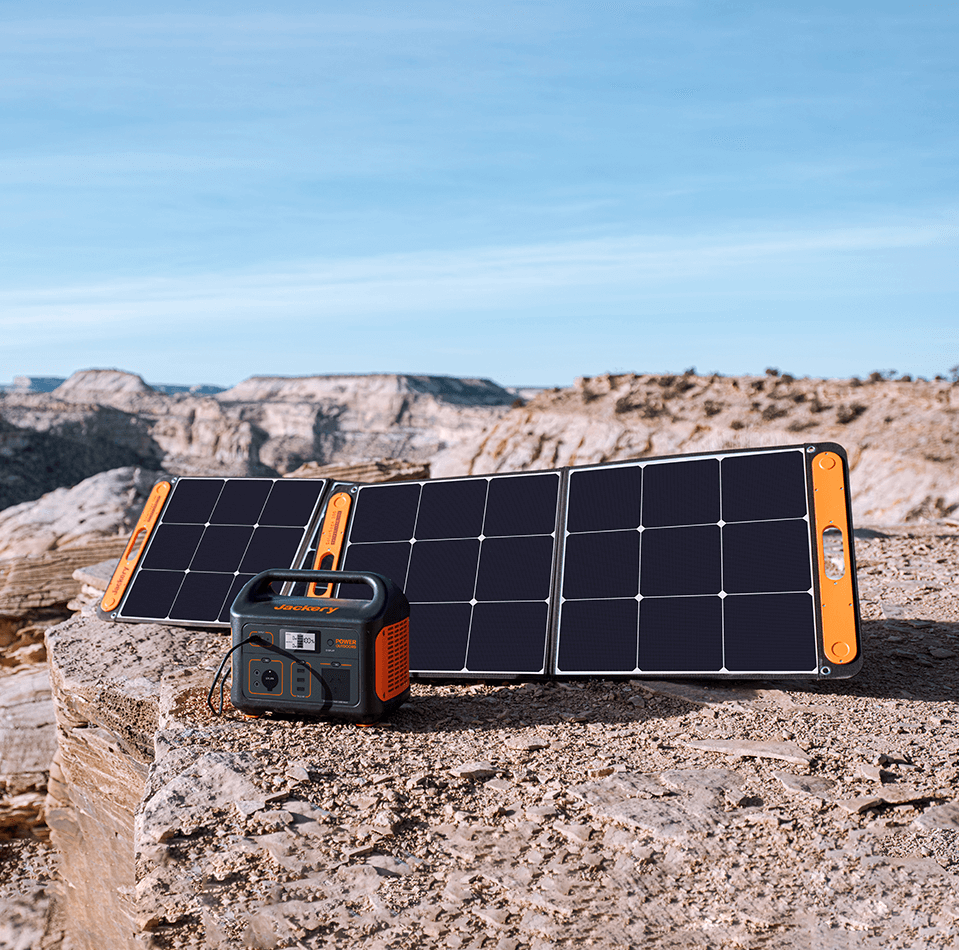

PREPARING YOUR OFF-GRID SOLAR GENERATOR FOR A GREEN AND CLEAN POWER SUPPLY

Connecting a SolarSaga 100W solar panel to the Explorer 500 Portable Power Station creates a solar generator. With our high-quality MPPT technology, the Explorer 500 can be fully charged under full sun in just 9.5 hours. With a Solar Generator setup, you can have an unlimited power source from the sun and always keep charged on the go. (Shop Jackery Solar Generator 500)



Solar Recharging Steps:

1. Find the DC interface on the back of SolarSaga 100;

2. Connect the DC interface of SolarSaga 100 with the DC input of Explorer 500

Connecting a SolarSaga 100W solar panel to the Explorer 500 Portable Power Station creates a solar generator. With our high-quality MPPT technology, the Explorer 500 can be fully charged under full sun in just 9.5 hours. With a Solar Generator setup, you can have an unlimited power source from the sun and always keep charged on the go. (Shop Jackery Solar Generator 500)



Solar Recharging Steps:

1. Find the DC interface on the back of SolarSaga 100;

2. Connect the DC interface of SolarSaga 100 with the DC input of Explorer 500

Please Keep the Following in Mind While Solar Recharging:

1. Recharging time varies depending on location, temperature, weather, etc. Therefore, the actual recharge time may be different.

2. Keep your portable power station away from heat and direct sunlight to extend its life span during recharging.

Please Keep the Following in Mind While Solar Recharging:

1. Recharging time varies depending on location, temperature, weather, etc. Therefore, the actual recharge time may be different.

2. Keep your portable power station away from heat and direct sunlight to extend its life span during recharging.

POWER OUTDOORS FOR THE WHOLE FAMILY

RV CAMPING/FISHING/OFF ROAD/HUNTING/BACKYARD GETAWAY/EMERGENCY

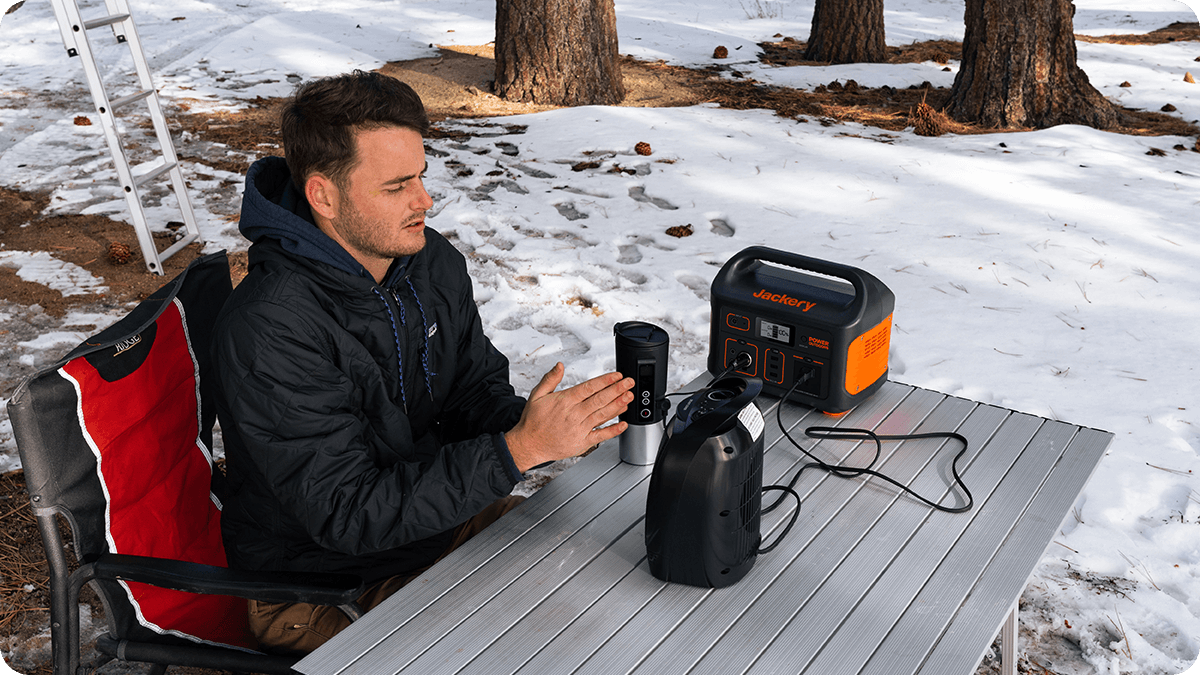

The Jackery Explorer 500 offers power-to-go in a compact, lightweight design featuring multiple connections to charge your mainstream gear and more. Never worry about a wall outlet or long extension cords. So feel free to go and explore the great outdoors and run your appliances like a blender, pellet smoker, projector, and tools. It can also be used as an emergency backup power supply to run lights, laptops, phones, a small fridge, a CPAP, and other devices in the event of a power outage.

Specifications

BATTERY INFO

Capacity:

Cell Chemistry:

Lifecycle:

Management System:

518Wh (21.6V, 24Ah)

Li-ion NMC

800 cycles to 80%+ capacity

BMS, Over Voltage Protection, Short Circuit Protection

Capacity: 518Wh (21.6V, 24Ah)

Cell Chemistry: Li-ion NMC

Lifecycle: 500 cycles to 80%+ capacity

Management System: BMS, Over Voltage Protection, Short Circuit Protection


PORTS

AC Output:

USB-A Output:

Car Output:

DC Output:

DC Input:

240VAC, 50Hz, 500W (1000W Surge)

5V, 2.4A

12V, 10A

12V, 7A (6.5mm*1.4mm)

12V-30V (6A Max)

AC Output:                               110VAC, 60Hz, 500W (1000W Surge)

USB-A Output:                         5V, 2.4A

Car Output:                              12V, 10A

DC Output:                               12V, 7A (6.5mm*1.4mm)

DC Input:                                  12V-30V (100W Max)

AC Output: 110VAC, 60Hz, 500W (1000W Surge)

USB-A Output: 5V, 2.4A

Car Output: 12V, 10A

DC Output: 12V, 7A (6.5mm*1.4mm)

DC Input: 12V-30V (100W Max)


RECHARGE TIMES

AC Adapter:

12V Car Adaptor:

Electric Generator:

SolarSaga 100W Solar Panel:

7.5 Hours

7.5 Hours

7.5 Hours

9.5 Hours

AC Adapter:

12V Car Adaptor:

Electric Generator:

SolarSaga 100W Solar Panel:

7.5 Hours

7.5 Hours

7.5 Hours

9.5 Hours

AC Adapter:                                    7.5 Hours

12V Car Adaptor:                           7.5 Hours

Electric Generator:                        7.5 Hours

SolarSaga 100W Solar Panel:    9.5 Hours


GENERAL

Weight:

Dimensions (LxWxD):

Operating Usage Temperature:

Certification:

Warranty:

13.32 lbs (6.04 kg)

11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)

14-104F (-10-40℃)

CEC, DOE, FCC, UL, ROHS, CA Prop 65

24 Months

Jackery SolarSaga 100W Solar Panel

Weight:

Dimensions (LxWxD):

Operating Usage Temperature:

Certification:

Warranty:

13.32 lbs (6.04 kg)

11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)

14-104F (-10-40℃)

CEC, DOE, FCC, UL, ROHS, CA Prop 65

24 Months

Jackery SolarSaga 100W Solar Panel

Weight:  13.32 lbs (6.04 kg)

Dimensions (LxWxD):   11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)

Operating Usage Temperature: 14-104F (-10-40℃)

Certification: CEC, DOE, FCC, UL, ROHS, CA Prop 65

Warranty:  24 Months

Optional Accessory:  Jackery SolarSaga 100W Solar Panel

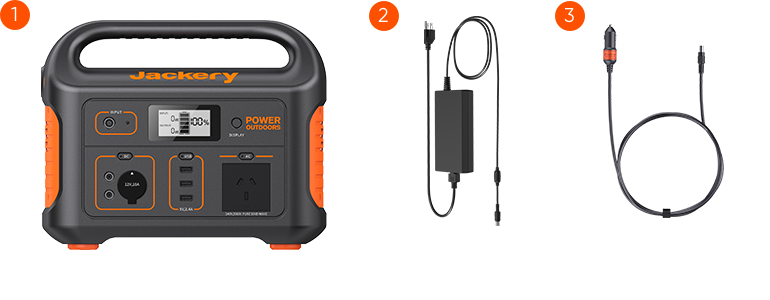

In The Box


User Manual

FAQs

Q: What devices can Explorer 500 power?

A: Please note that the AC output port can only charge/power devices that operate at less than 500-Watt. Once exceeding, the Explorer 500 will shut off automatically. Please refer to your device specification before purchase.

Q: How to know the working times for my device?

A: Working time = 240Wh* 0.85 / operating wattage of your device

For reference, assuming power consumption of your device is 60W (might be a box fan), working time will be 240Wh*0.85/60w=3.4hrs (rough calculated) .

Please note: actual power consumption varies from different usages, please consult Jackery for better purchase decision.

Q: How long does it take to full charge this power station?

A: Within 7.5 hours from an AC wall outlet; Also another two recharge backup choices for your convenience, recharge from car port around 7.5 hours, and around within 9.5 hours from Jackery Saga 100W solar panel (Sold Separately).

Q: How do I know if my Explorer 500 is charged?

A: To check the charge level of the Explorer 500, refer to the LCD Battery Display.

Q: What type of battery is in an Explorer 500?

A: Explorer 500 contains a battery pack which consists of an array of cylindri cal 18650 lithium-ion battery cells with high energy density.

Q: Can the Explorer 500 be charged while using?

A: Yes, you can use the Explorer 500 to charge devices, while it's being re-charged at the same time.
