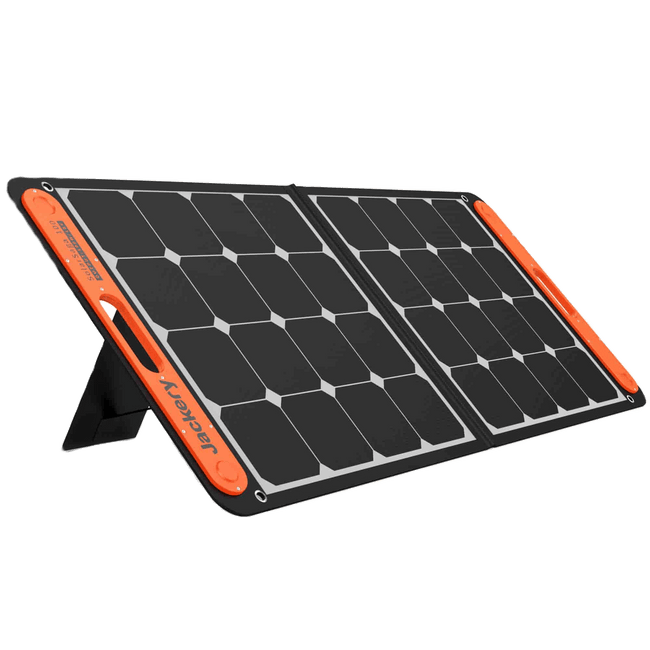

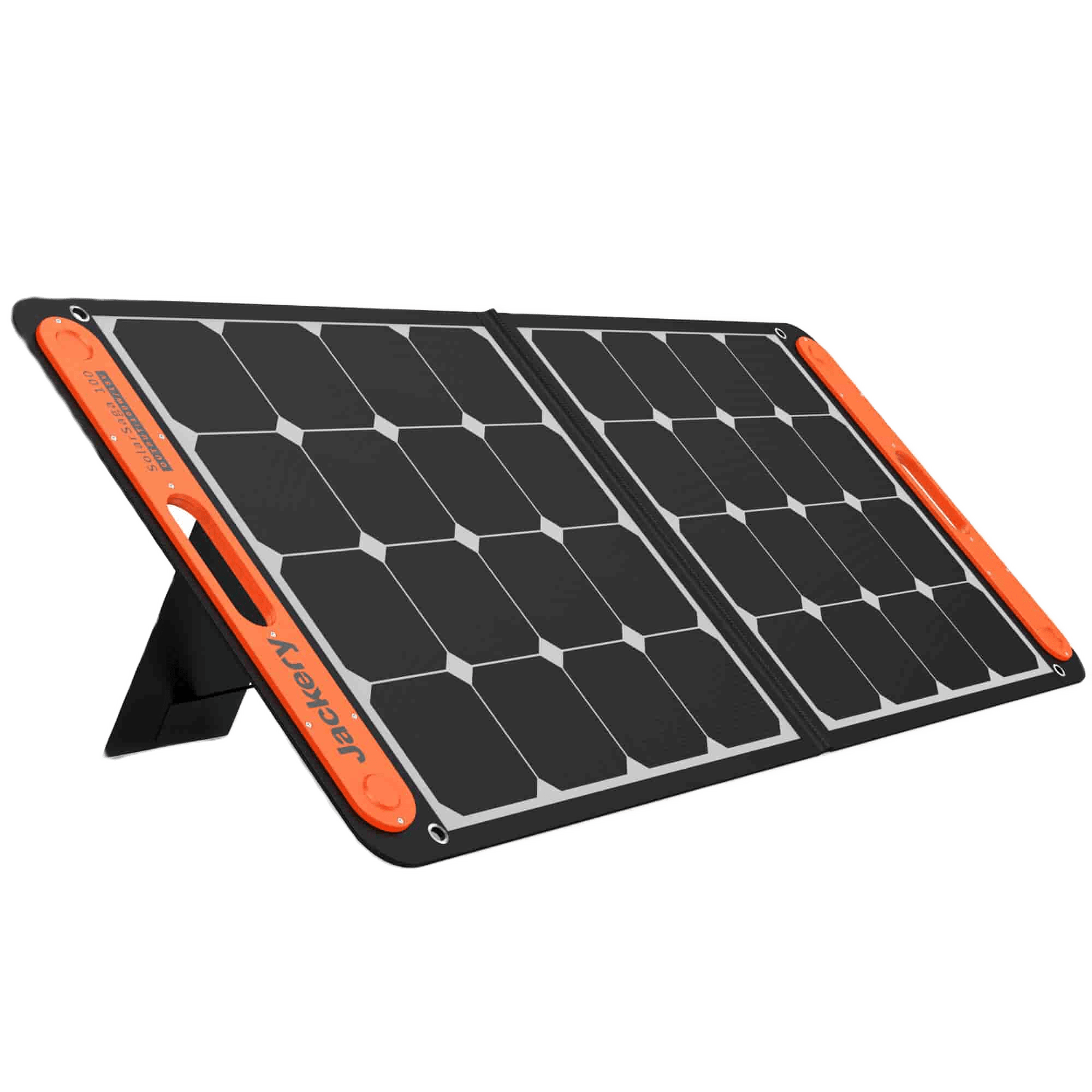

Foldable design for easy transport
Compact and lightweight
Rubber handle make it easy to carry

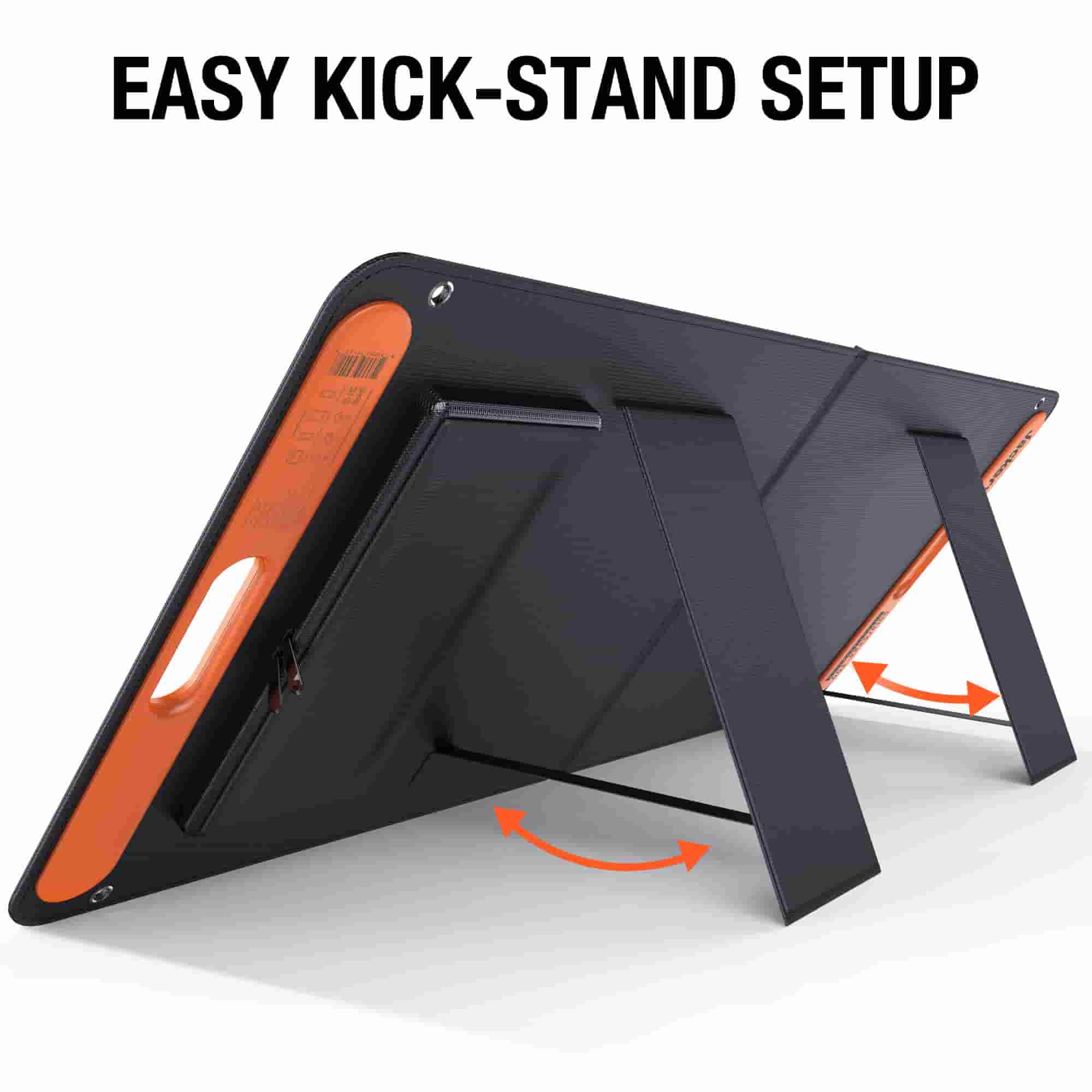

Adjustable kickstands for easy installation or angle adjustment
Foldable design for easy transport
Compact and lightweight
Rubber handle make it easy to carry
Adjustable kickstands for easy installation or angle adjustment
Two SolarSaga 100W solar panels can quickly charge the Explorer 1000 Pro(not included)within 8 hours by connecting together with a SolarSaga Y Parallel Cable (package not included).
Solar recharging steps:
1.Find the DC interface on the back of SolarSaga 100;
2.Connect the DC interfaces of 2*SolarSaga 100 with the Y Parallel Cable;
3. Connect the Y Parallel Cable with the Anderson input of Explorer 1000 Pro.
SolarSaga 100W solar panel can quickly charge The Explorer 500/240(not included)within 9.5/4 hours.
Solar recharging steps:
1.Find the DC interface on the back of SolarSaga 100;
2. Connect DC interface with the DC input of Explorer 500/240.
Two SolarSaga 100W solar panels can quickly charge the Explorer 1000(not included)within 8 hours by connecting together with a SolarSaga Y Parallel Cable (package not included).
Solar recharging steps:
1.Find the DC interface on the back of SolarSaga 100;
2.Connect the DC interfaces of 2*SolarSaga 100 with the Y Parallel Cable;
3. Connect the Y Parallel Cable with the Anderson input of Explorer 1000.

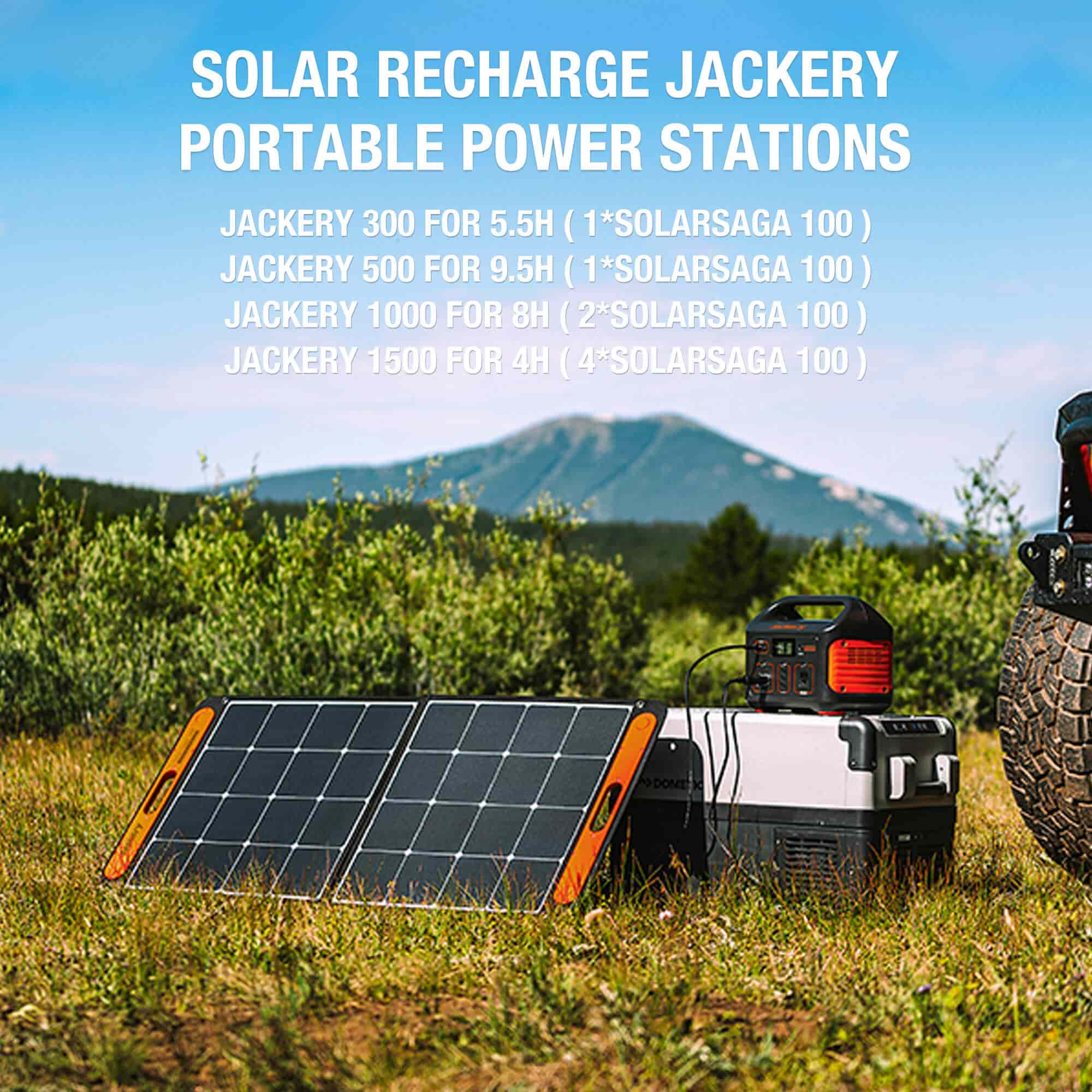

SolarSaga 100W solar panel can quickly charge The Explorer 500/300/240(not included)within 7.5/5.5/4 hours.
Solar recharging steps:
1.Find the DC interface on the back of SolarSaga 100;
2. Connect DC interface with the DC input of Explorer 500/300/240.
Please Mind These While Solar Recharging:
1. Recharging time varies from different location, temperature, weather etc. The actual time may be different.
2. During recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.

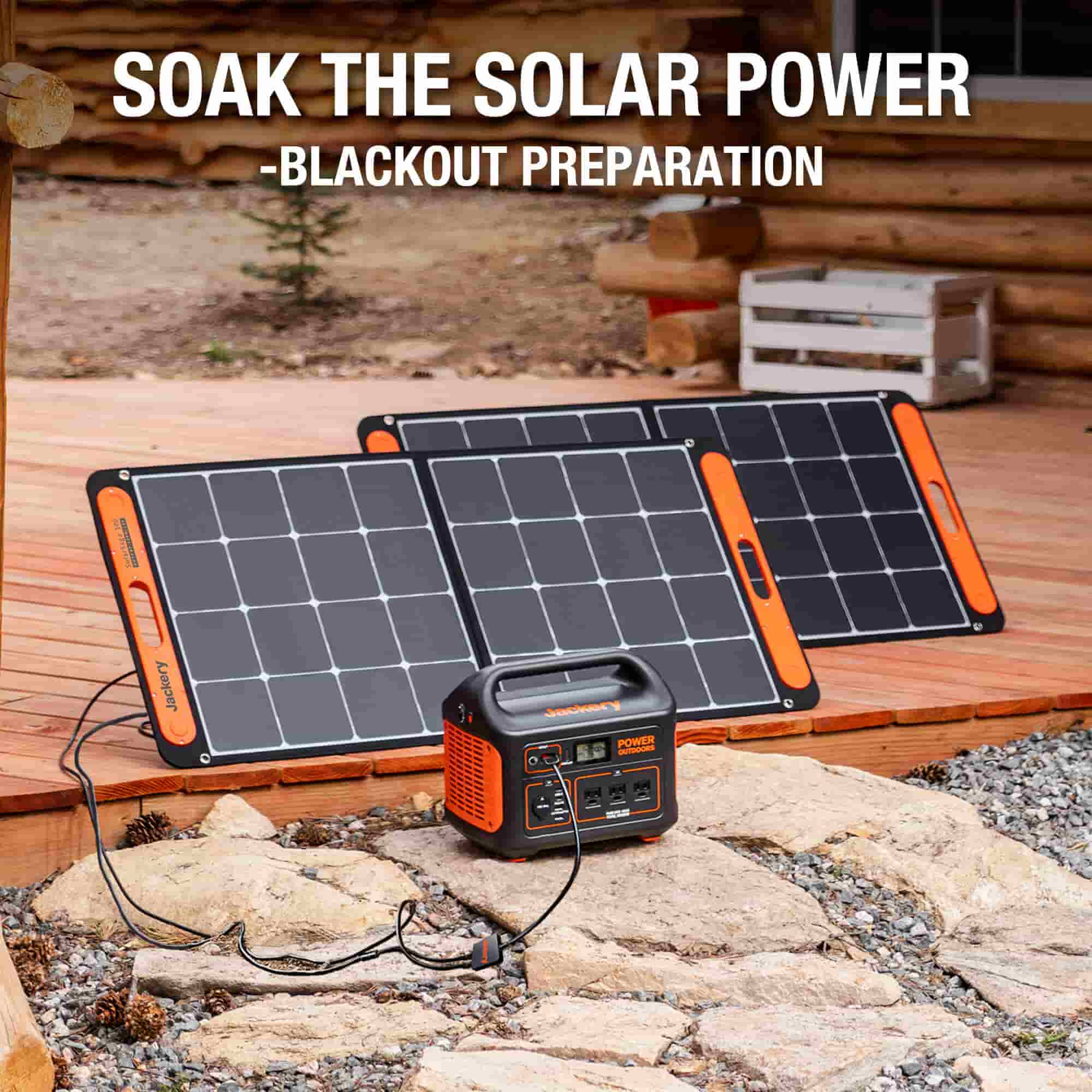

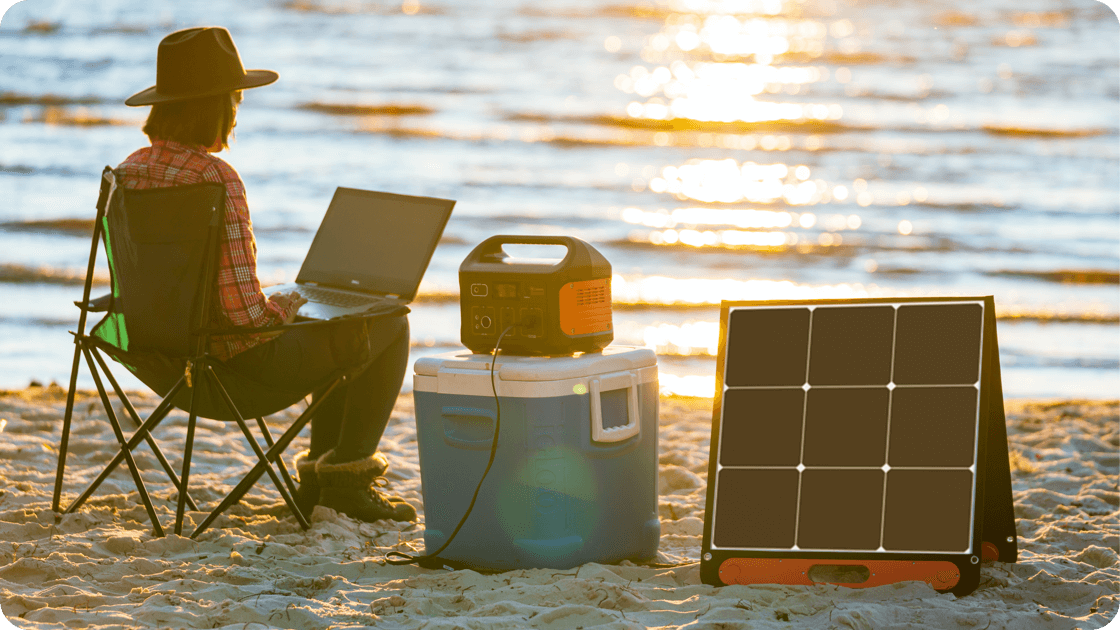

Build up your Portable-Solar-Generator System together with Jackery Solar Saga 100W and Jackery Explorer 240/500/1000 Pro power station (sold separately). Jackery solar generator is ideal for any outdoor activities such as camping, climbing, hiking, picnic and even unexpected power outages. It could run most of your essential outdoor appliances and electronics. When you need power in special circumstances, Jackery solar generator can also be your reliable backup power supply.
Peak Power:
Cell Efficiency:
Power Voltage:
Power Current:
Open Circuit Voltage:
Short Circuit Current:
100W
23%
20V
5A
24.8V
5.6A
Peak Power: 100W
Cell Efficiency: 23%
Power Voltage: 20V
Power Current: 5A
Open Circuit Voltage: 24.8V
Short Circuit Current: 5.6A
USB-A Output:
USB-C Output:
5V, 2.4A
5V, 3A
USB-A Output:
USB-C Output:
5V, 2.4A
5V, 3A
USB-A Output: 5V, 2.4A
USB-C Output: 5V, 3A
Weight:
Dimensions (folded):
Dimensions (unfolded):
Operating Usage Temperature:
Warranty:
10.33 lbs (4.69 kg)
24 x 21 x 1.4 in (610 x 535 x 35 mm)
48 x 21 x 0.2 in (1220 x 535 x 5 mm)
14-149F (-10-65℃)
24 Months
Weight: 10.33 lbs (4.69 kg)

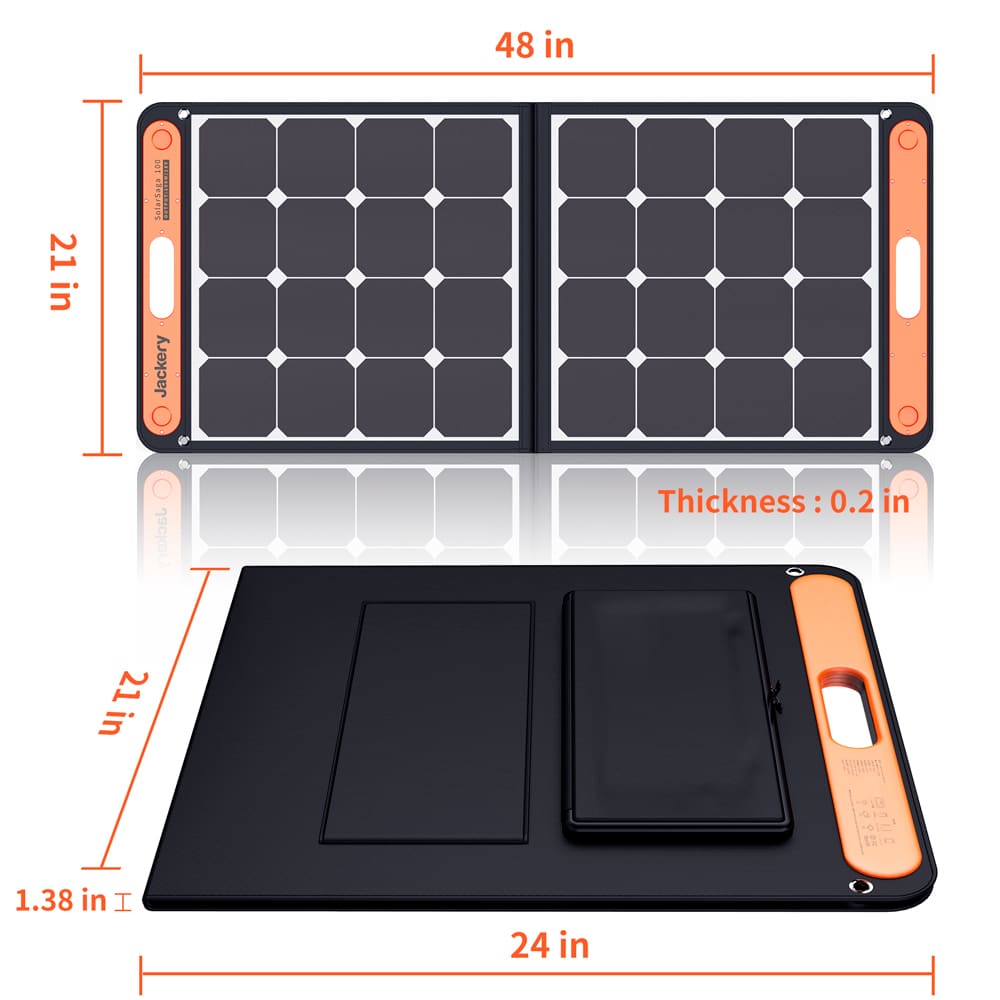

Dimensions (folded): 24 x 21 x 1.4 in (610 x 535 x 35 mm)
Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x 5 mm)
Operating Usage Temperature: 14-149F (-10-65℃)
Warranty: 24 Months
Weight: 10.33 lbs (4.69 kg)
Dimensions (folded): 24 x 21 x 1.4 in (610 x 535 x 35 mm)
Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x 5 mm)
Operating Usage Temperature: 14-149F (-10-65℃)
Warranty: 24 Months
1*SolarSaga 100
1*User Manual
1*SolarSaga 100
1*User Manual
Weight: 6.6 lbs (3 kg)
Dimensions (LxWxD): 5.2 x 9.1 x 7.7 inches (13.2 x 23.1 x 19.5 cm)
Operating Usage Temperature: 14-104F (-10-40℃)
Certification: CEC, DOE, FCC, UL, CA Prop 65
Warranty: 24 Months
Peak Power:
Cell Efficiency:
Power Voltage:
Power Current:
Open Circuit Voltage:
Short Circuit Current:
100W
23%
19V
5.27A
24.2V
5.42A
Peak Power: 100W
Cell Efficiency: 23%
Power Voltage: 19V
Power Current: 5.27A
Open Circuit Voltage: 24.2V
Short Circuit Current: 5.42A
USB-A Output:
USB-C Output:
5V, 2.4A
5V, 3A
USB-A Output:
USB-C Output:
5V, 2.4A
5V, 3A
USB-A Output: 5V, 2.4A
USB-C Output: 5V, 3A
Weight:
Dimensions (folded):
Dimensions (unfolded):
Operating Usage Temperature:
Warranty:
10.33 lbs (4.69 kg)
24 x 21 x 1.4 in (610 x 535 x 35 mm)
48 x 21 x 0.2 in (1220 x 535 x 5 mm)
14-149F (-10-65℃)
24 Months
Weight: 10.33 lbs (4.69 kg)
Dimensions (folded): 24 x 21 x 1.4 in (610 x 535 x 35 mm)
Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x 5 mm)
Operating Usage Temperature: 14-149F (-10-65℃)
Warranty: 24 Months
Weight: 10.33 lbs (4.69 kg)
Dimensions (folded): 24 x 21 x 1.4 in (610 x 535 x 35 mm)
Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x 5 mm)
Operating Usage Temperature: 14-149F (-10-65℃)
Warranty: 24 Months
1*SolarSaga 100x
1*User Manual
1*SolarSaga 100
1*User Manual
1*SolarSaga 100/SolarSaga 100X
1*User Manual
A: As you know , the solar panels are affected by many factors. such as the intensity of the light and the angle of the panel put on the ground. 100W is tested in an ideal laboratory. However, the intensity of the light constantly changes. In addition, the angle of the light illuminating the solar panel also changes with the rotation of the sun. Please try test your solar panel under the full sunlight to see, and make sure there is no shadow cast on the panel.
A: It is IP65 water-resistant that will protect from water splashing (Do not place it under the rain, or to soak in water). The zippers on the pocket can hold the power cords, and cover the power port.
A: We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.

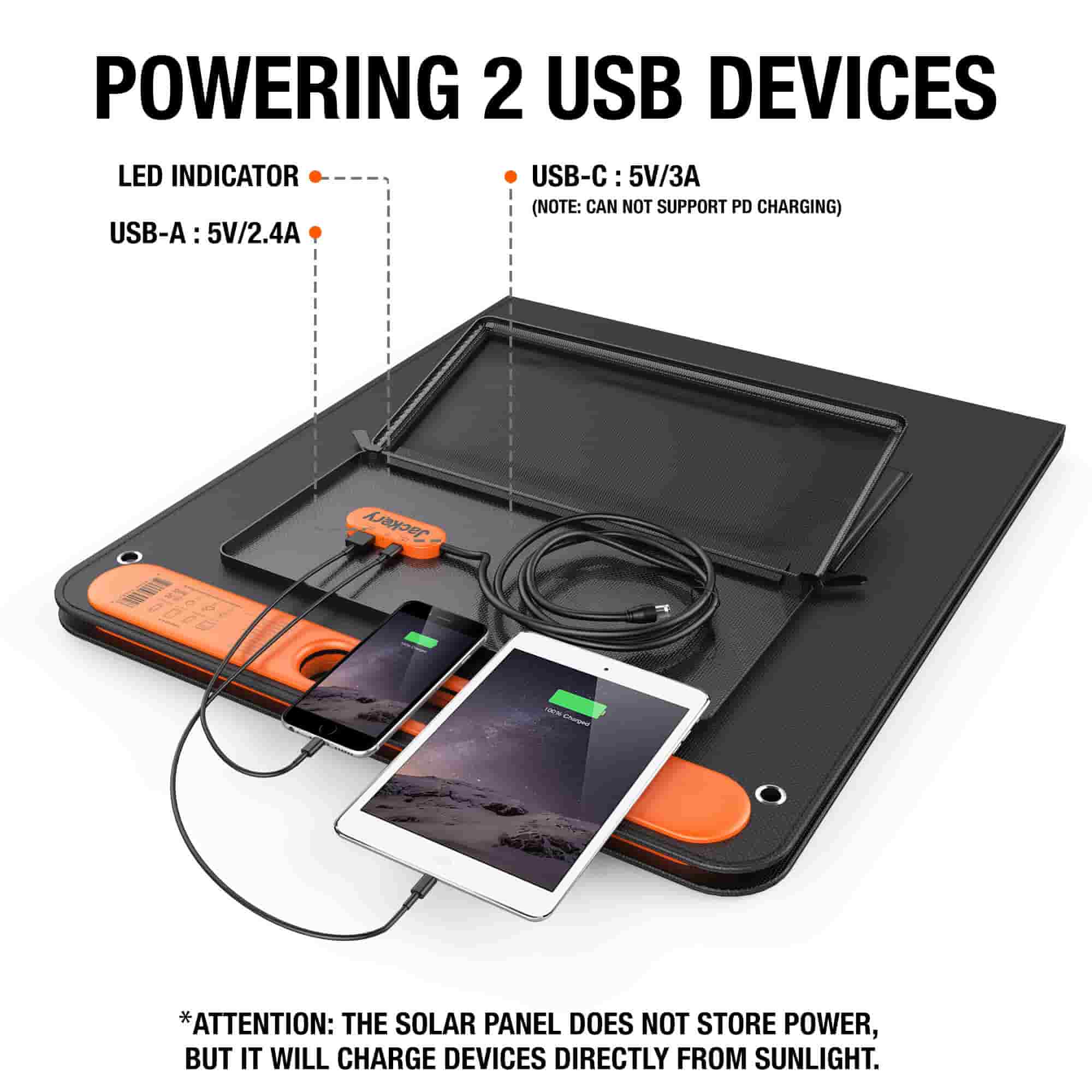

A: Yes, the 100W solar panel has 1* USB-C(5V,3A) output port and 1* USB-A(5V, 2.4A) output port.
