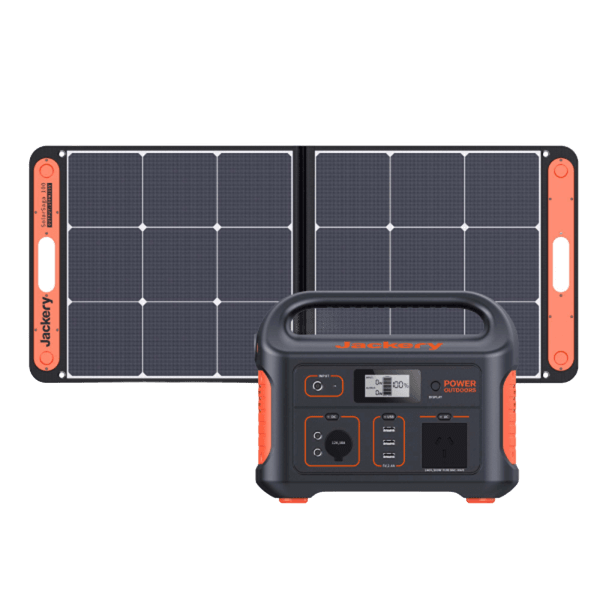

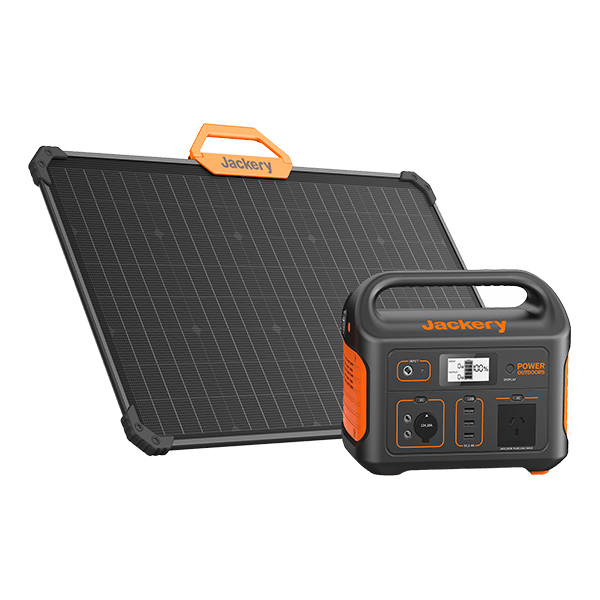

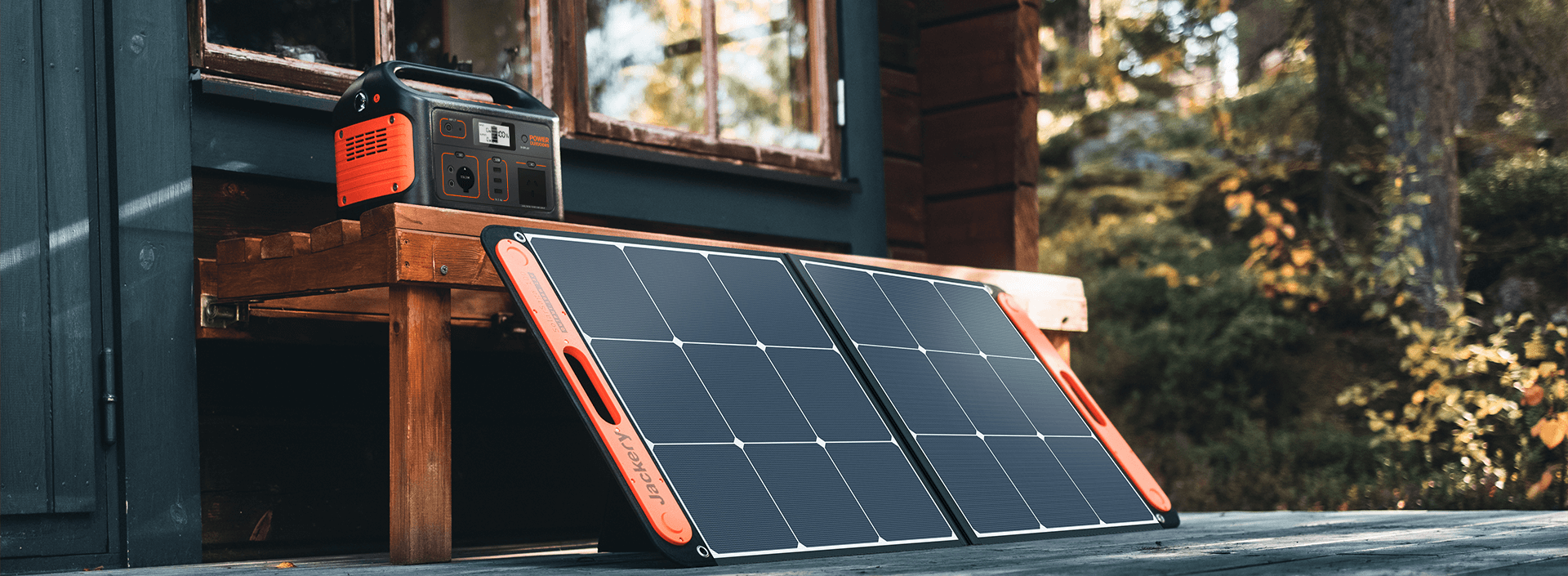

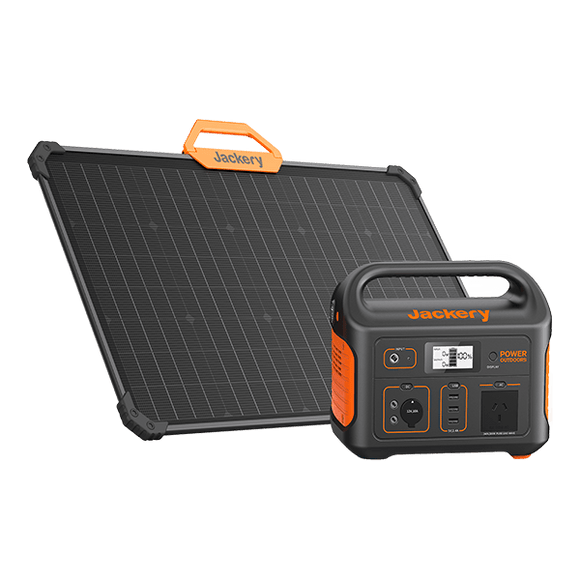

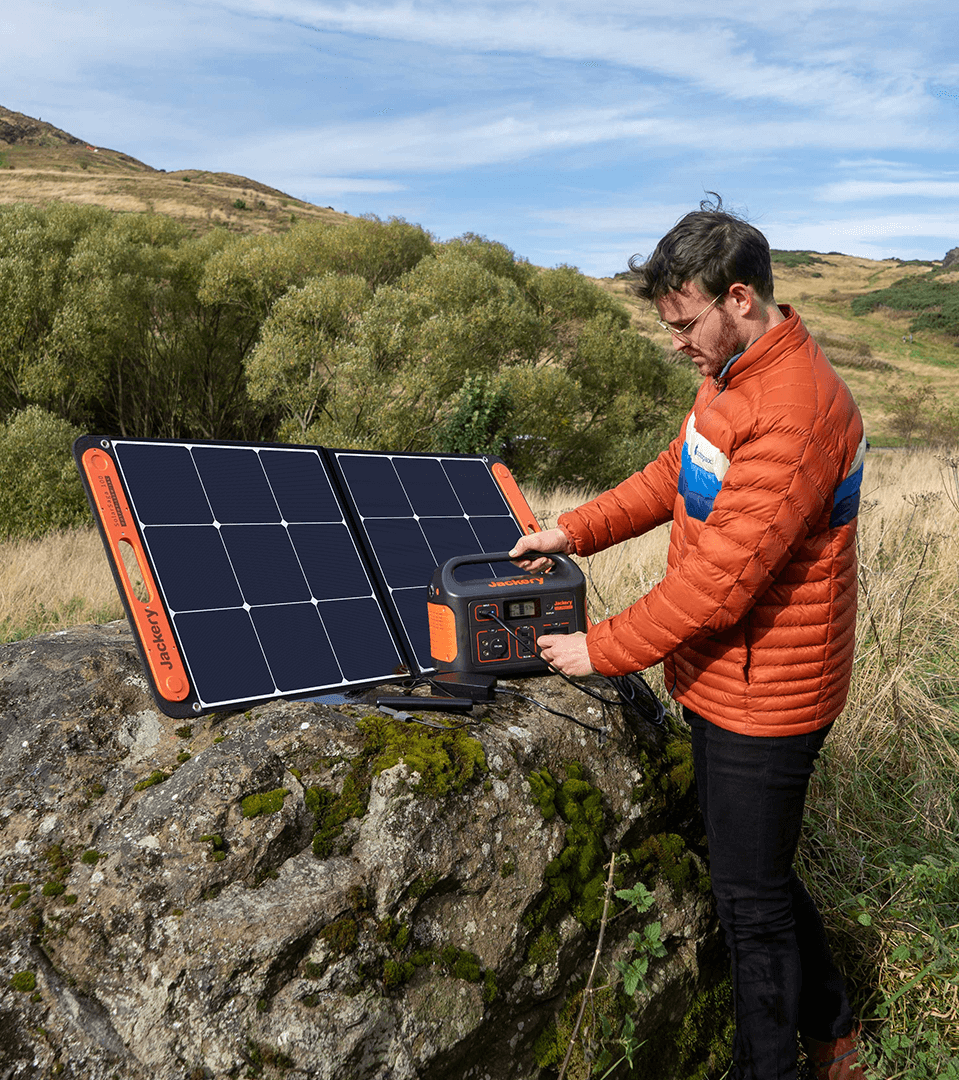

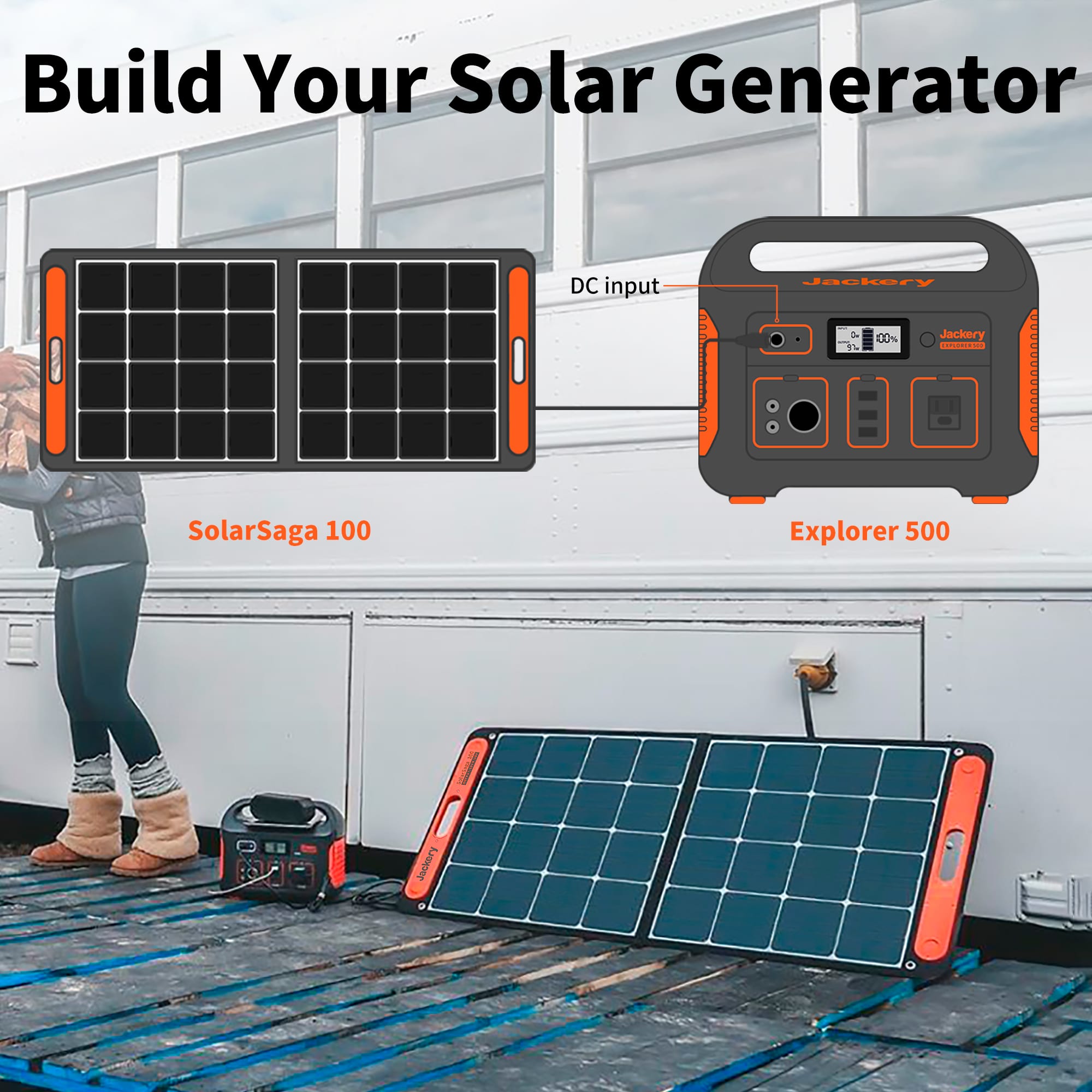

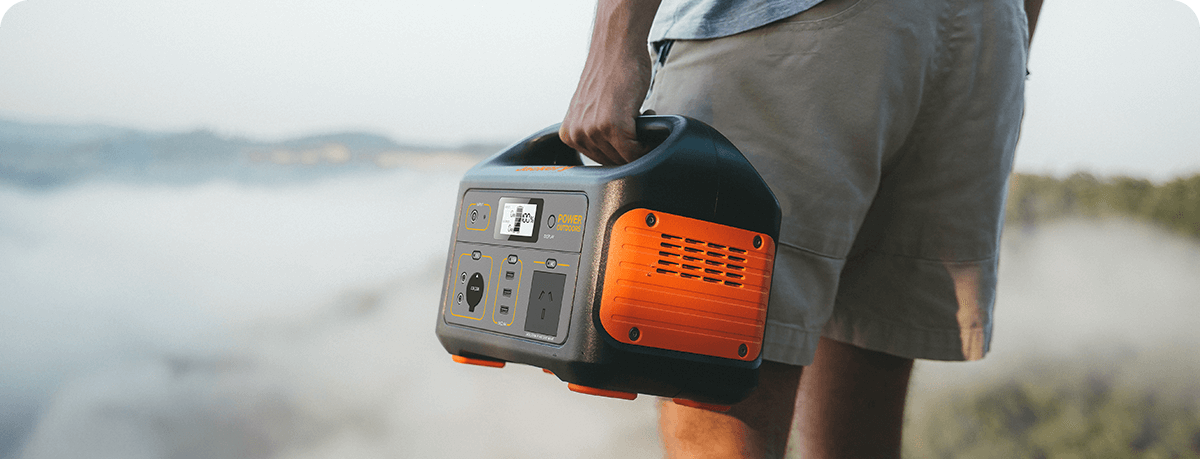

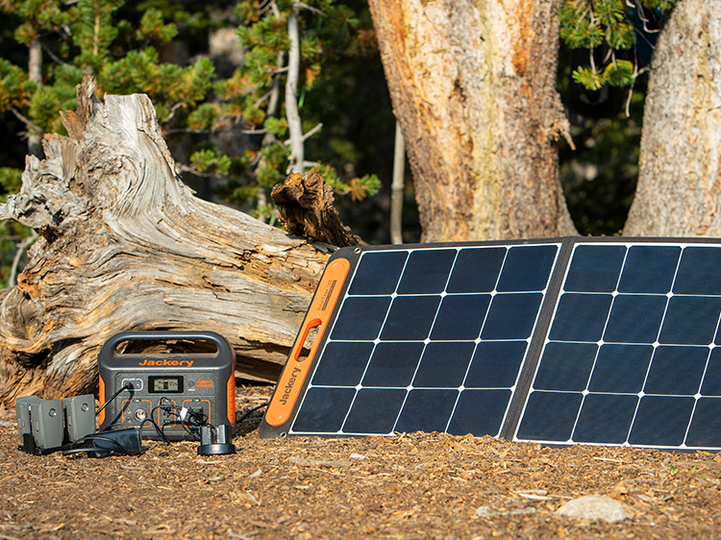

Jackery Explorer 500 + SolarSaga 100W solar generator is a solar solution that combines Jackery Explorer 500 portable power station with SolarSaga 100W solar panel. It converts sun energy captured by SolarSaga 100W solar panels into electrical power and then stores it in the Explorer 500 portable power station for later use. This solar generator is a reliable and clean power source for campers, RVs, or as an emergency backup if your power goes out.
The Explorer 500 can be fully charged under straight full sun in 9.5 hours by connecting SolarSaga 100W solar panel.
Please Mind These While Solar Recharging:
1. Recharging time varies from different location, temperature, weather etc. The actual time may be different.
2. During recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.

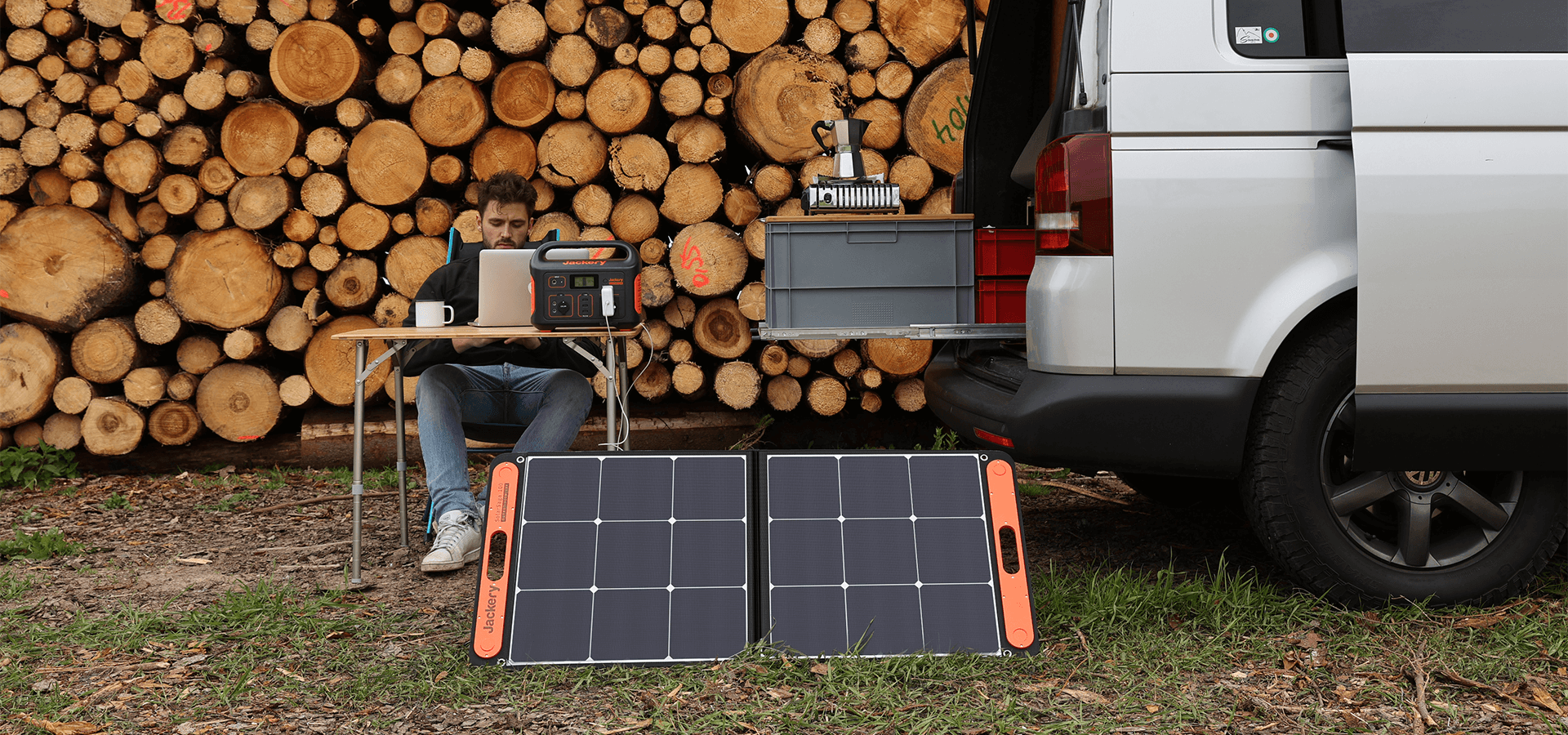

Jackery Explorer 500 + SolarSaga 100W solar panel offer power-to-go, in a compact, lightweight design featuring multiple connections to charge your mainstream gear and more. This solar generator use solar power to charge. You are not tethered by a wire or a plug anywhere – carefree to go explore the great outdoors when you can run your appliances such as blender, pellet smoker, projector and surveying instruments. It can also be used as an emergency backup power supply in the event of a power outage. It can supply power to light your lamps, laptops, phones, small fridges, CPAP, and other devices.
Capacity:
Cell Chemistry:
Lifecycle:
Management System:
518Wh (21.6V, 24Ah)
Li-ion NMC
800 cycles to 80%+ capacity
BMS, Over Voltage Protection, Short Circuit Protection
Capacity: 518Wh (21.6V, 24Ah)
Cell Chemistry: Li-ion NMC
Lifecycle: 800 cycles to 80%+ capacity
Management System: BMS, Over Voltage Protection, Short Circuit Protection

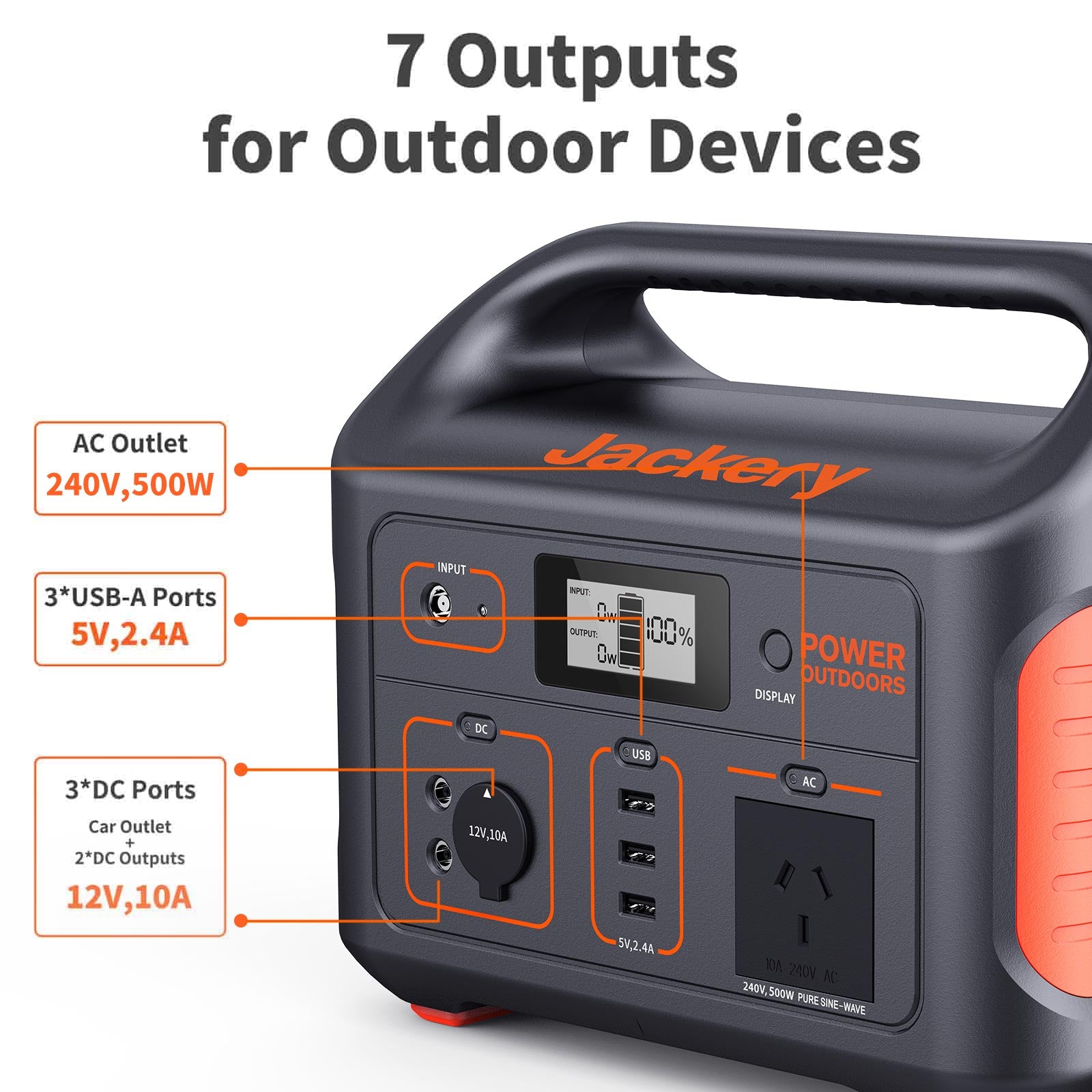

AC Output:
USB-A Output:
Car Output:
DC Output:
DC Input:
240VAC, 50Hz, 500W (1000W Surge)
5V, 2.4A
12V, 10A
12V, 7A (6.5mm*1.4mm)
12V-30V (6A Max)
AC Output: 240VAC, 50Hz, 500W (1000W Surge)
USB-A Output: 5V, 2.4A
Car Output: 12V, 10A
DC Output: 12V, 7A (6.5mm*1.4mm)
DC Input: 12V-30V (6A Max)
AC Output: 110VAC, 60Hz, 500W (1000W Surge)
USB-A Output: 5V, 2.4A
Car Output: 12V, 10A
DC Output: 12V, 7A (6.5mm*1.4mm)
DC Input: 12V-30V (100W Max)
AC Adapter:
12V Car Adaptor:
Electric Generator:
SolarSaga 100W Solar Panel:
7.5 Hours
7.5 Hours
7.5 Hours
9.5 Hours
AC Adapter:
12V Car Adaptor:
Electric Generator:
SolarSaga 100W Solar Panel:
7.5 Hours
7.5 Hours
7.5 Hours
9.5 Hours
AC Adapter: 7.5 Hours
12V Car Adaptor: 7.5 Hours
Electric Generator: 7.5 Hours
SolarSaga 100W Solar Panel: 9.5 Hours
Weight:
Dimensions (LxWxD):
Operating Usage Temperature:
Certification:
Warranty:
13.32 lbs (6.04 kg)
11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)
14-104F (-10-40℃)
CEC, DOE, FCC, UL, ROHS, CA Prop 65
24 Months
Weight:
Dimensions (LxWxD):
Operating Usage Temperature:
Certification:
Warranty:
13.32 lbs (6.04 kg)
11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)
14-104F (-10-40℃)
CEC, DOE, FCC, UL, ROHS, CA Prop 65
24 Months
Weight: 13.32 lbs (6.04 kg)
Dimensions (LxWxD): 11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)
Operating Usage Temperature: 14-104F (-10-40℃)
Certification: CEC, DOE, FCC, UL, ROHS, CA Prop 65
Warranty: 24 Months
Optional Accessory: Jackery SolarSaga 100W Solar Panel
Peak Power:
Cell Efficiency:
Power Voltage:
Power Current:
Open Circuit Voltage:
Short Circuit Current:
100W
23%
20V
5A
24.8V
5.6A
Peak Power: 100W
Cell Efficiency: 23%
Power Voltage: 20V
Power Current: 5A
Open Circuit Voltage: 24.8V
Short Circuit Current: 5.6A
USB-A Output:
USB-C Output:
5V, 2.4A
5V, 3A
USB-A Output:
USB-C Output:
5V, 2.4A
5V, 3A
USB-A Output: 5V, 2.4A
USB-C Output: 5V, 3A
Weight:
Dimensions (folded):
Dimensions (unfolded):
Operating Usage Temperature:
Warranty:
10.33 lbs (4.69 kg)
24 x 21 x 1.4 in (610 x 535 x 35 mm)
48 x 21 x 0.2 in (1220 x 535 x 5 mm)
14-149F (-10-65℃)
24 Months
Weight: 10.33 lbs (4.69 kg)
Dimensions (folded): 24 x 21 x 1.4 in (610 x 535 x 35 mm)
Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x 5 mm)
Operating Usage Temperature: 14-149F (-10-65℃)
Warranty: 24 Months
Weight: 10.33 lbs (4.69 kg)
Dimensions (folded): 24 x 21 x 1.4 in (610 x 535 x 35 mm)
Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x 5 mm)
Operating Usage Temperature: 14-149F (-10-65℃)
Warranty: 24 Months

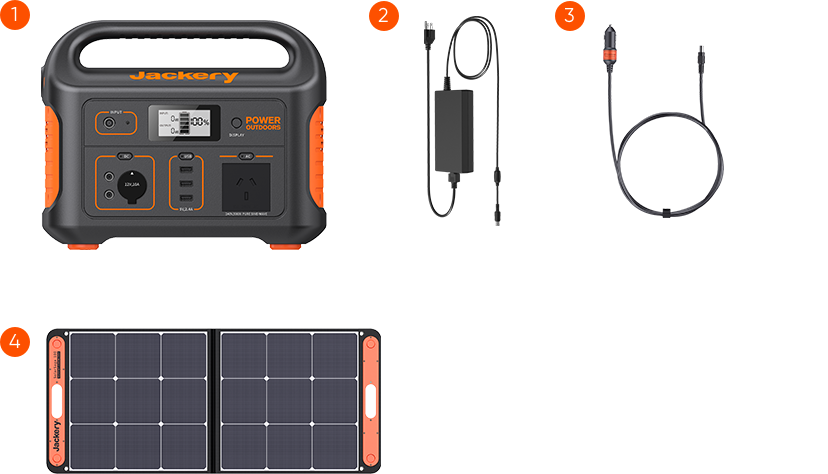

1*SolarSaga 100
1*User Manual
1*SolarSaga 100
1*User Manual
Weight: 6.6 lbs (3 kg)
Dimensions (LxWxD): 5.2 x 9.1 x 7.7 inches (13.2 x 23.1 x 19.5 cm)
Operating Usage Temperature: 14-104F (-10-40℃)
Certification: CEC, DOE, FCC, UL, CA Prop 65
Warranty: 24 Months
Explorer 500
SolarSaga 100
A: 1. Your purchase order (including purchases on Solar Generator Bundles) will be shipped separately if the order contains more than one item. This shipping rule is additionally applicable for Amazon orders.
2. You can only find one tracking number in your order even if the order contains more than one package. We are pleased to email you with all tracking numbers when requested.
3. Please feel free to contact us through this email address: hello@Jackery.com or via Amazon.
A: Please note that the AC output port can only charge/power devices that operate at less than 500-Watt. Once exceeding, the Explorer 500 will shut off automatically. Please refer to your device specification before purchase.

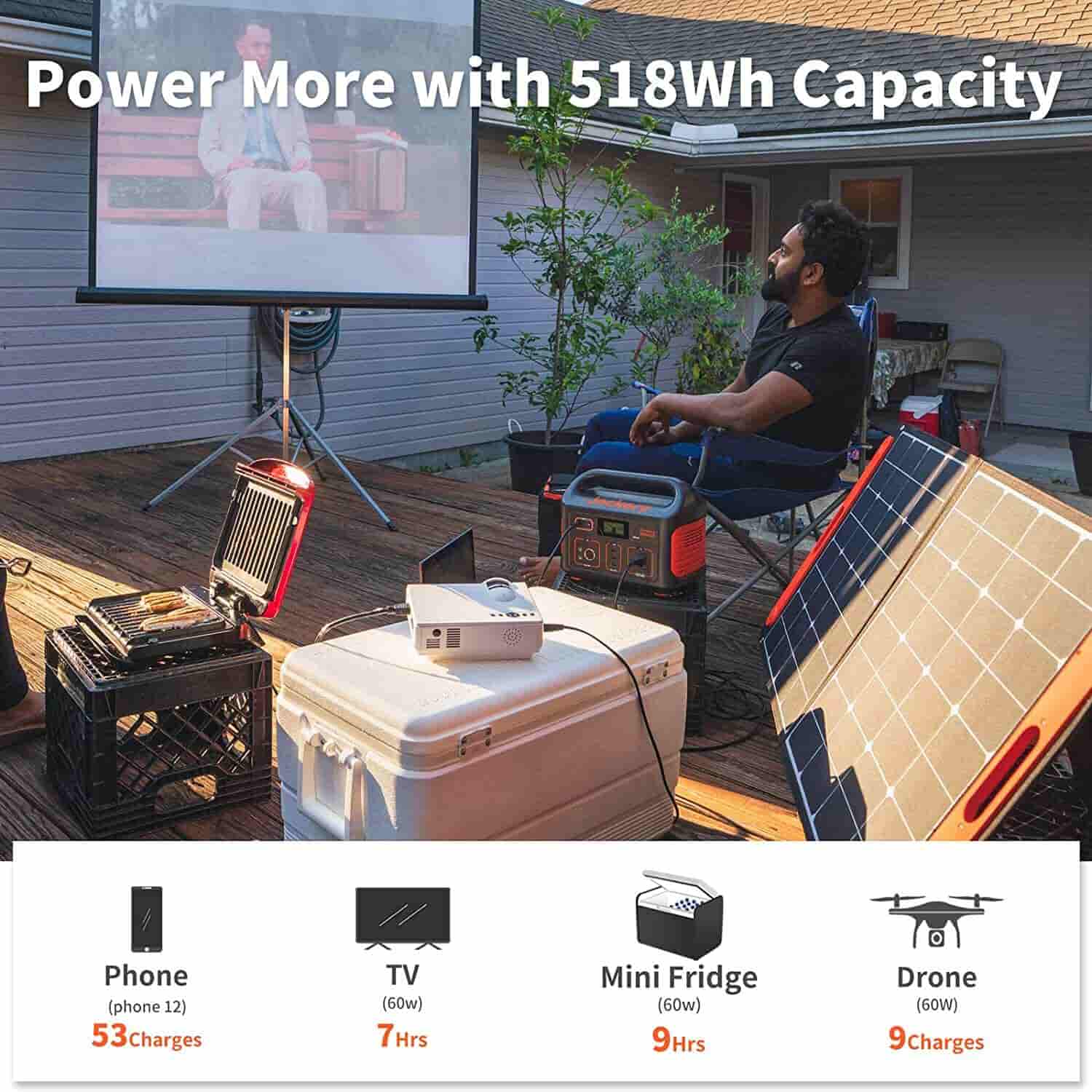

A: Working time = 500Wh* 0.85 / operating power of your device.
For reference, assuming power consumption of your device is 60W (might be a box fan), working time will be 500Wh*0.85/60w=7hrs (rough calculated) .
Please note: actual power consumption varies from different usages, please consult Jackery for better purchase decision.

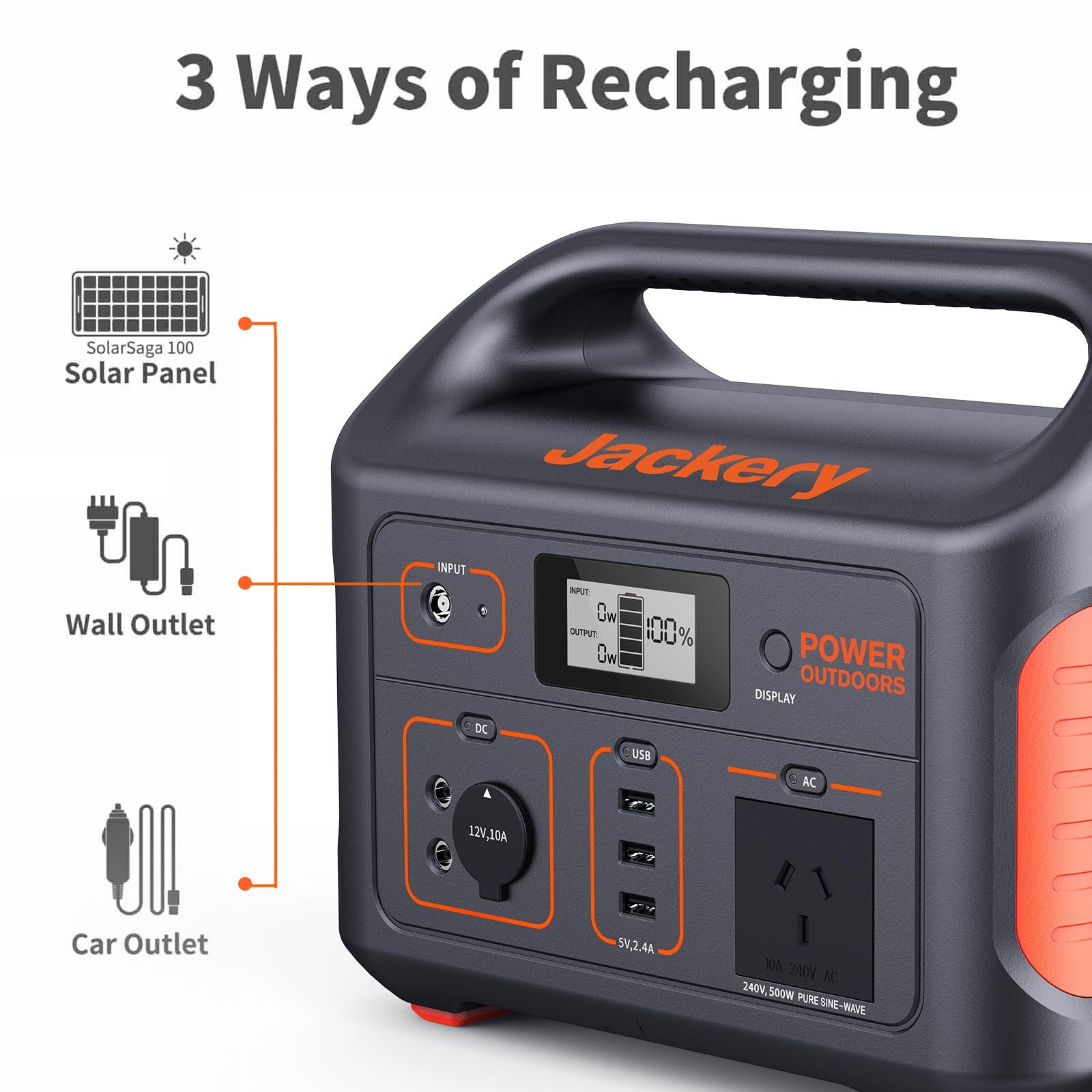

A: Within 7.5 hours from an AC wall outlet; Also another two recharge backup choices for your convenience, recharge from car port around 16 hours, and around within 9.5 hours from Jackery Saga 100W solar panel (Sold Separately).
A: To check the charge level of the Explorer 500, refer to the LCD Battery Display.
A: Explorer 500 contains a battery pack which consists of an array of cylindri cal 18650 lithium-ion battery cells with high energy density.
A: Yes, you can use the Explorer 500 to charge devices, while it's being re-charged at the same time.
A: The Saga 100W is not waterproof. To maximize the lifespan of the module,Please don’t make it get wet.

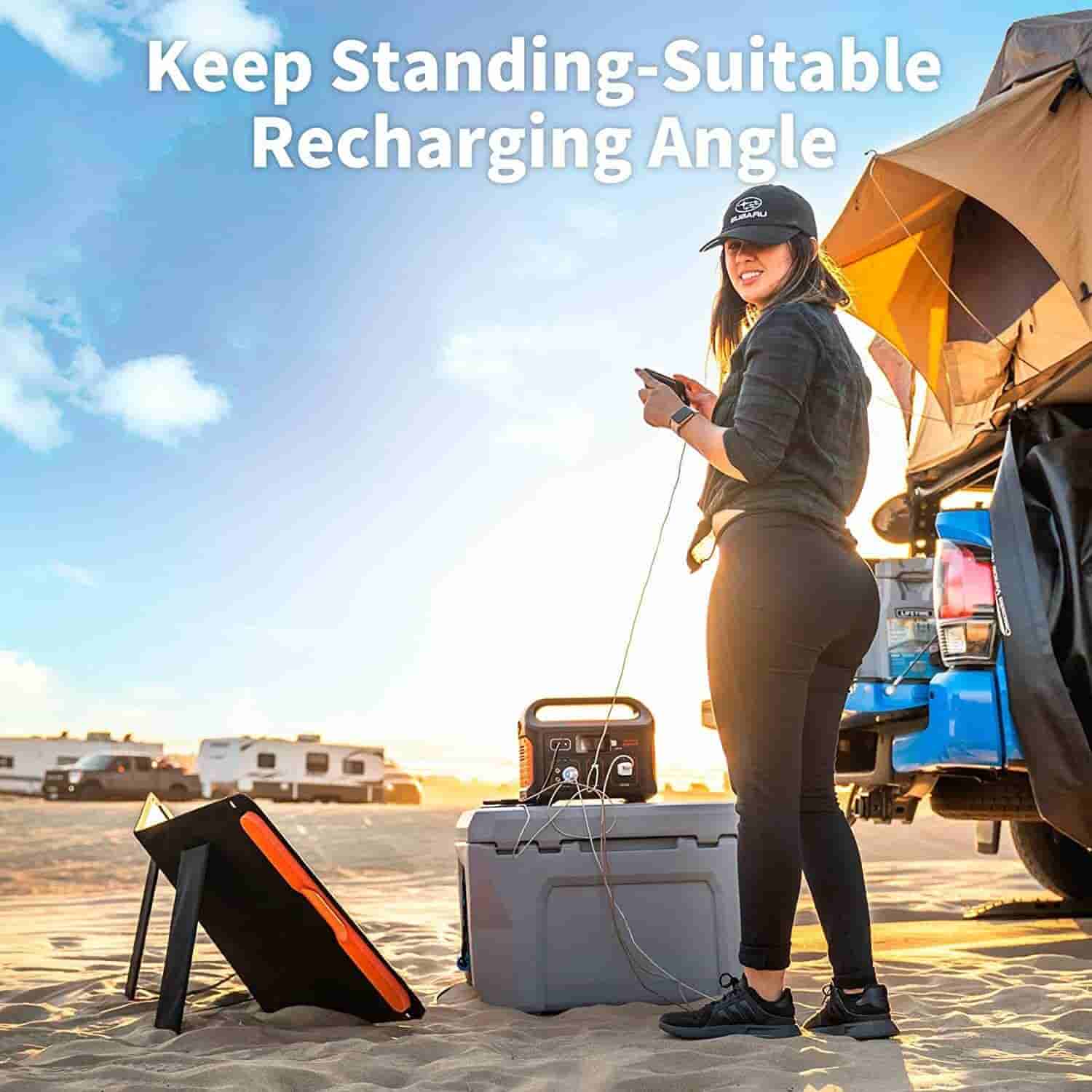

A: As you know , the solar panels are affected by many factors, such as the intensity of the light and the angle of the panel put on the ground. 100W is tested in an ideal laboratory. However, the intensity of the light constantly changes. In addition, the angle of the light illuminating the solar panel also changes with the rotation of the sun. Please try test your solar panel under the full sunlight to see, and make sure there is no shadow cast on the panel.
A: We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.

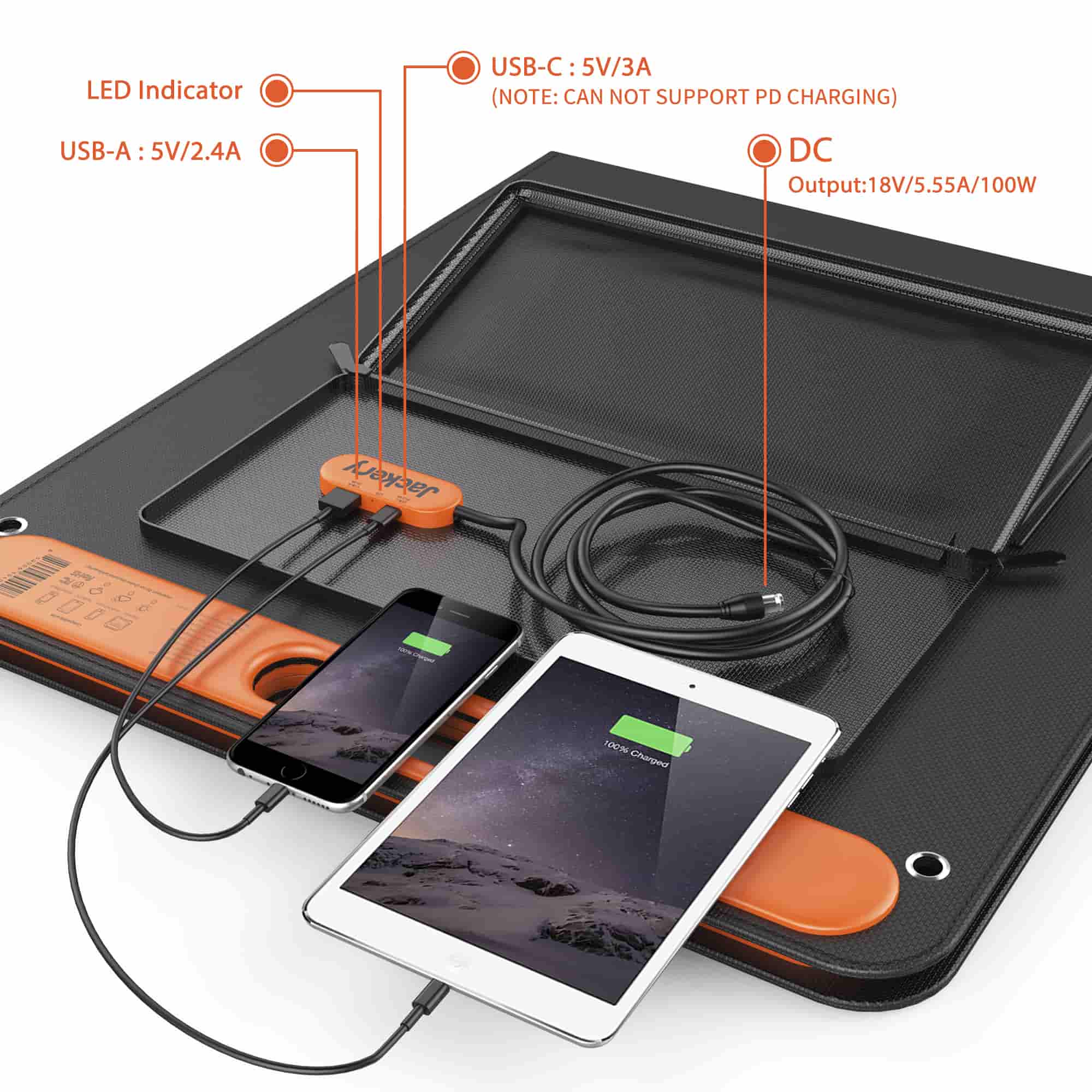

A: Yes, the 100W solar panel has 1* USB-C(5V,3A) output port and 1* USB-A(5V, 2.4A) output port.
